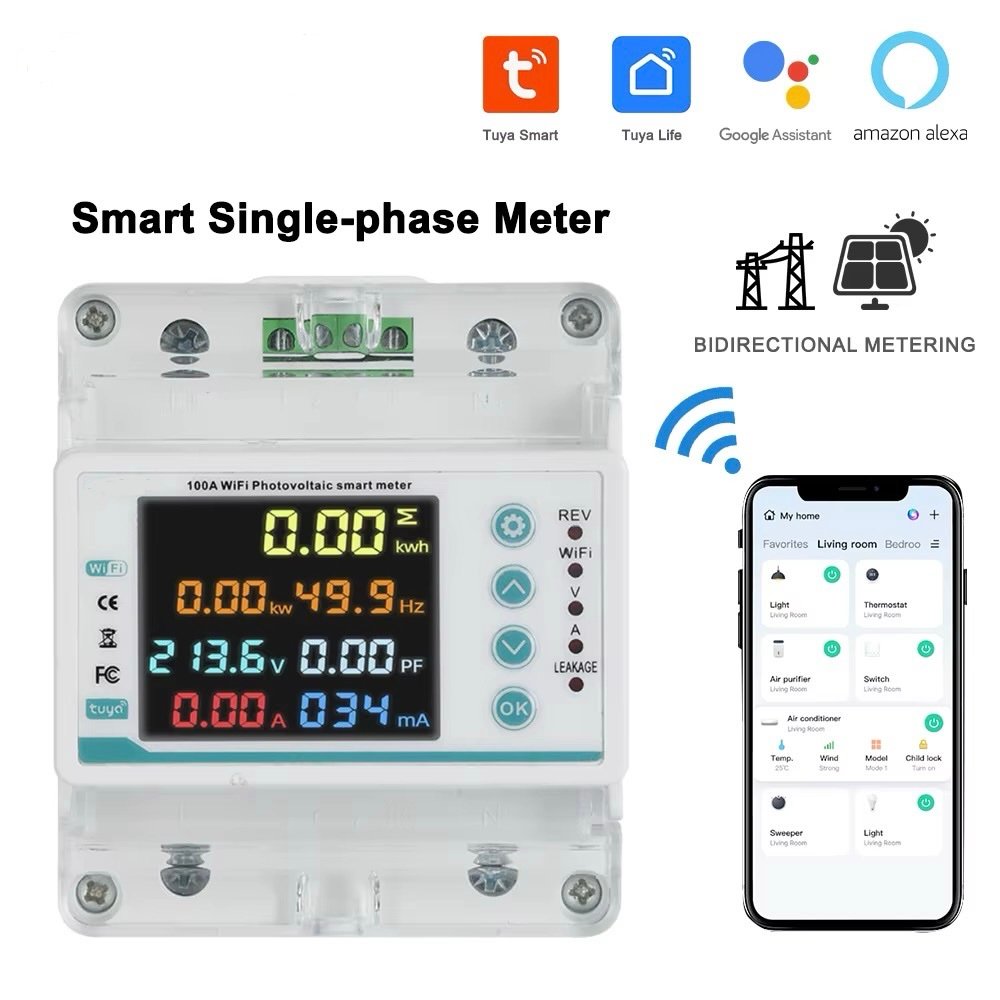

Monitor electricity use and protect your single-phase electrical system with this 100A WiFi smart energy meter and protector. It provides real-time electrical measurements on its color display and connects to the Tuya Smart or Smart Life app for remote monitoring and control.

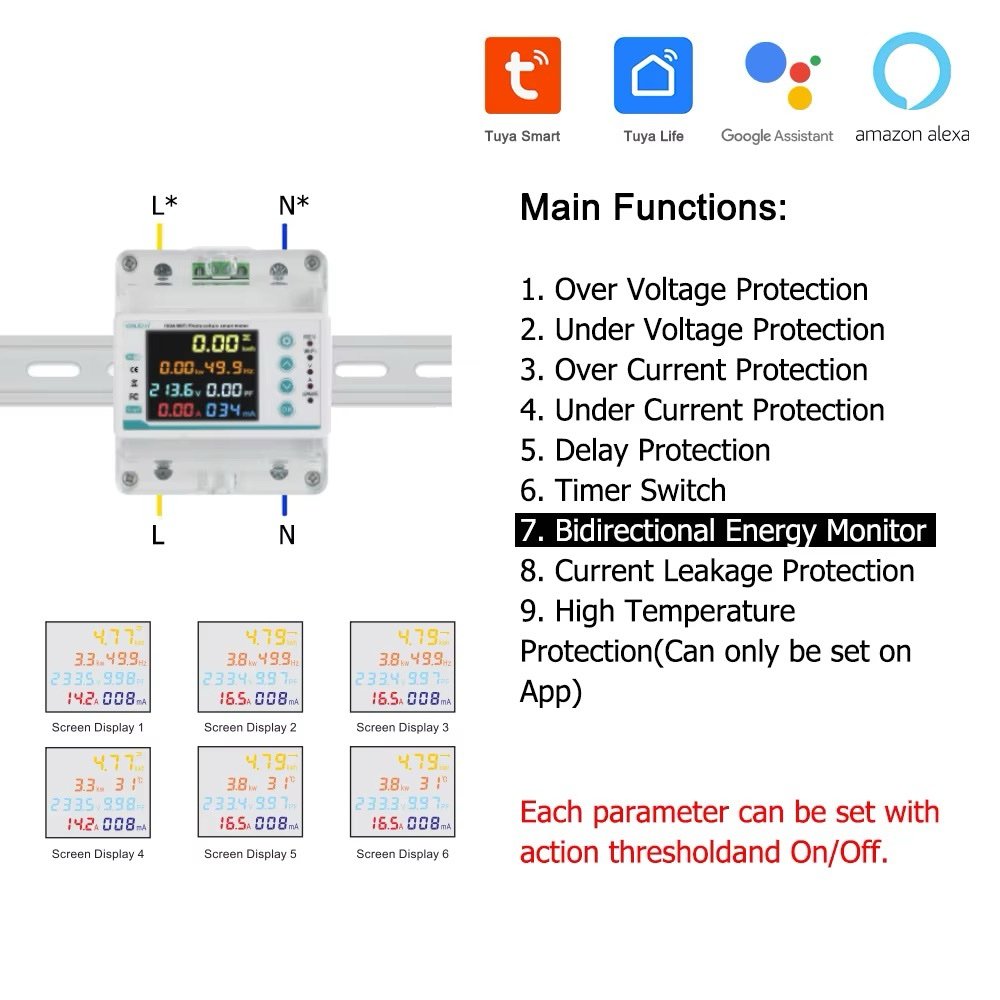

Key Features
- Maximum current capacity: 100A

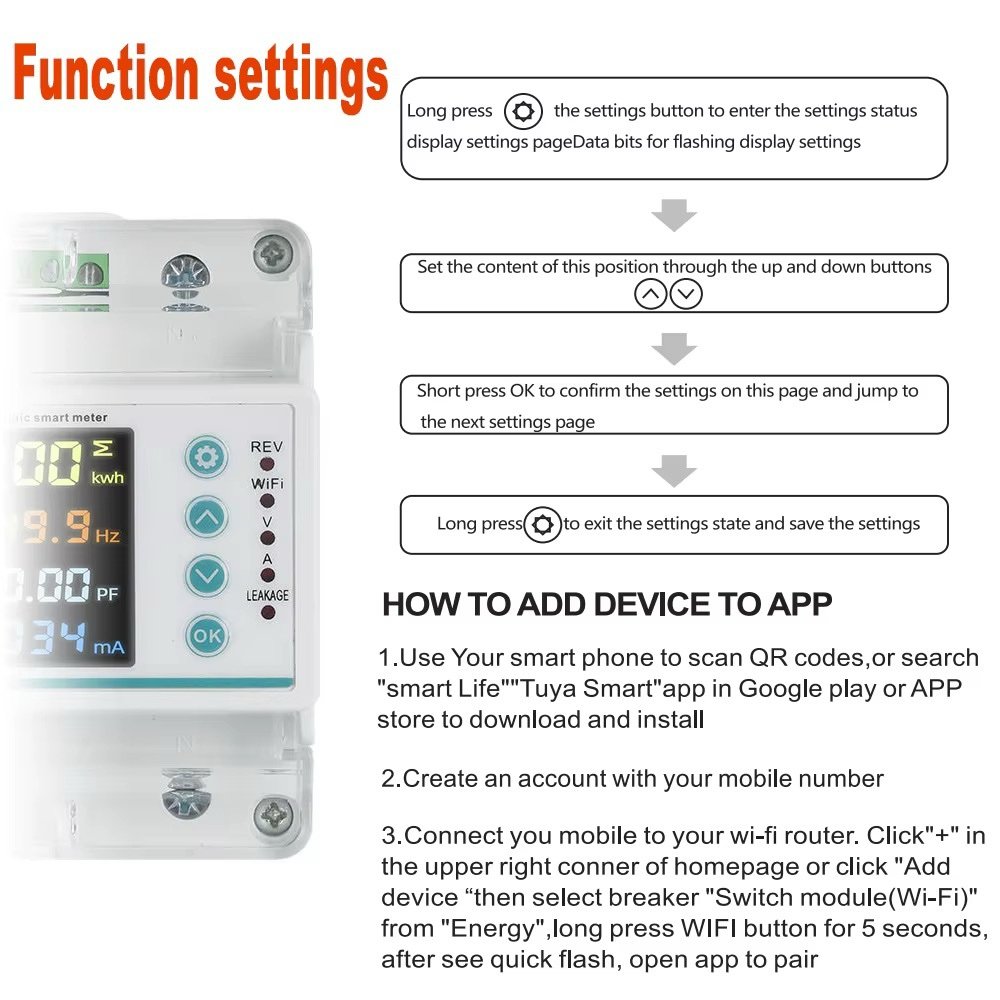

- WiFi control through Tuya Smart and Smart Life
- Compatible with Google Assistant and Amazon Alexa
- Bidirectional energy metering for grid and solar applications
- Over-voltage and under-voltage protection
- Over-current and under-current protection
- Adjustable current leakage protection
- High-temperature protection through the app
- Adjustable delay and automatic recovery settings
- Timer switch and remote ON/OFF control
- DIN-rail mounting for electrical distribution boards

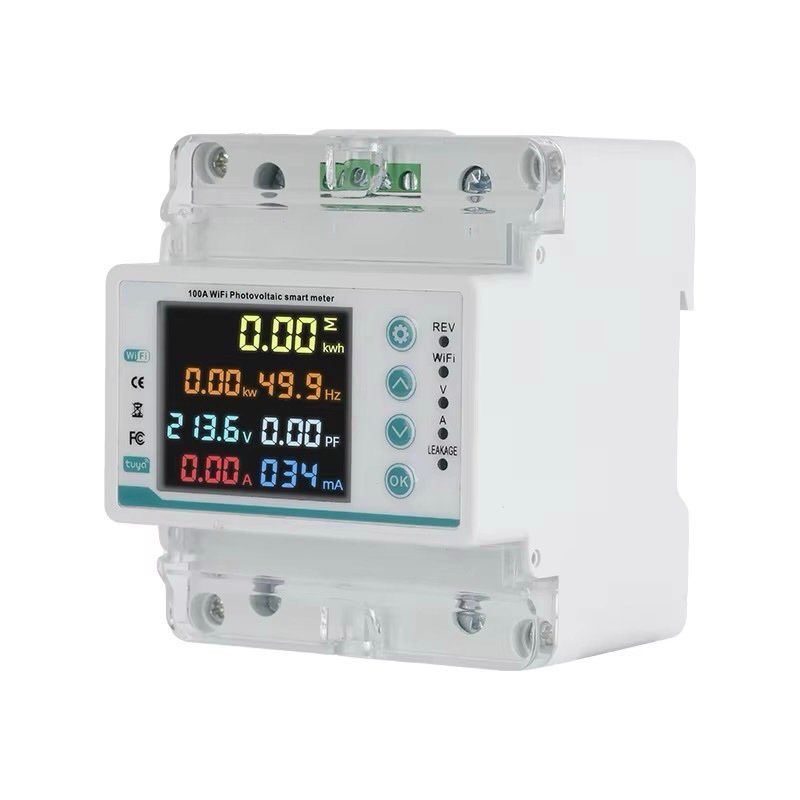

Display Measurements
Displays voltage (V), current (A), active power (kW), energy consumption (kWh), frequency (Hz), power factor (PF), leakage current (mA), and temperature.

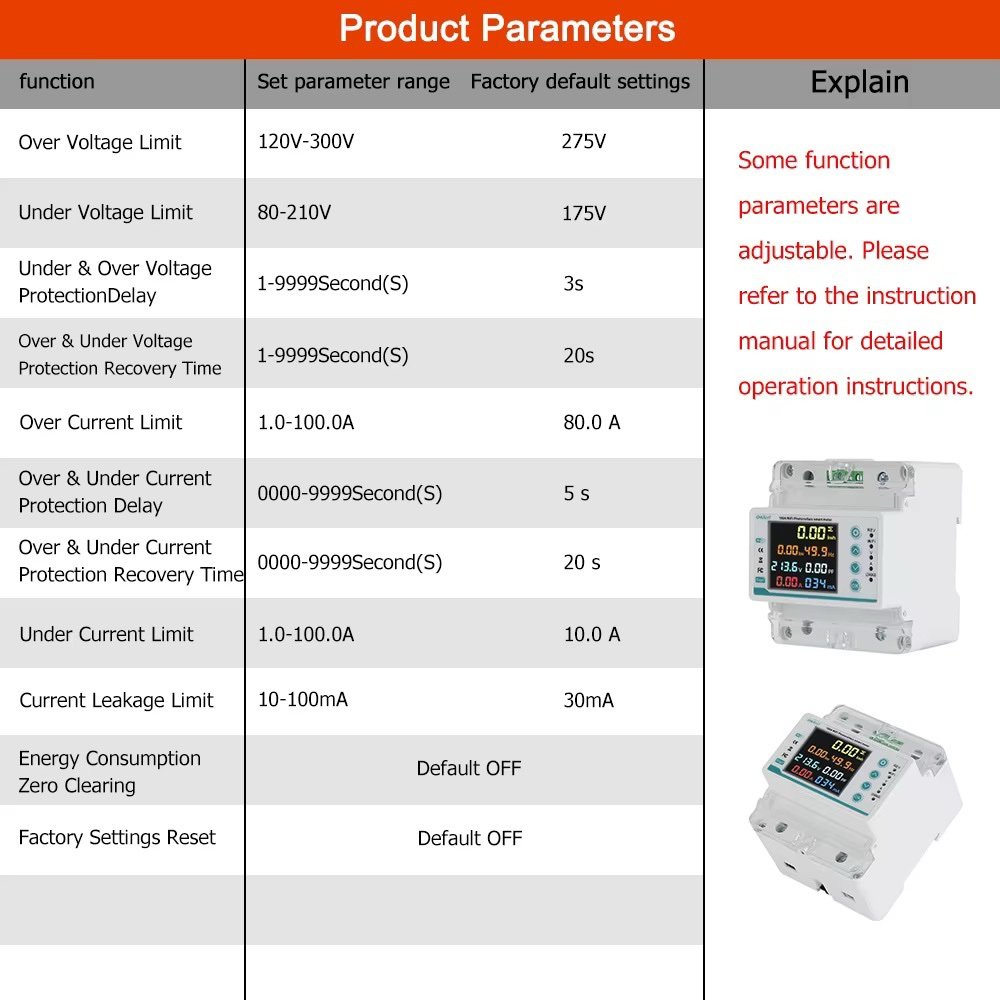

Technical Specifications
- System: Single phase
- Current range: 1–100A
- Adjustable over-voltage limit: 120–300V
- Adjustable under-voltage limit: 80–210V
- Adjustable leakage current limit: 10–100mA
- Protection and recovery delay: Adjustable up to 9,999 seconds
- Operating temperature: -20°C to 70°C
- Operating humidity: Up to 85%
- Maximum installation altitude: 2,000m
- Maximum wiring capacity: 35mm² insulated copper wire

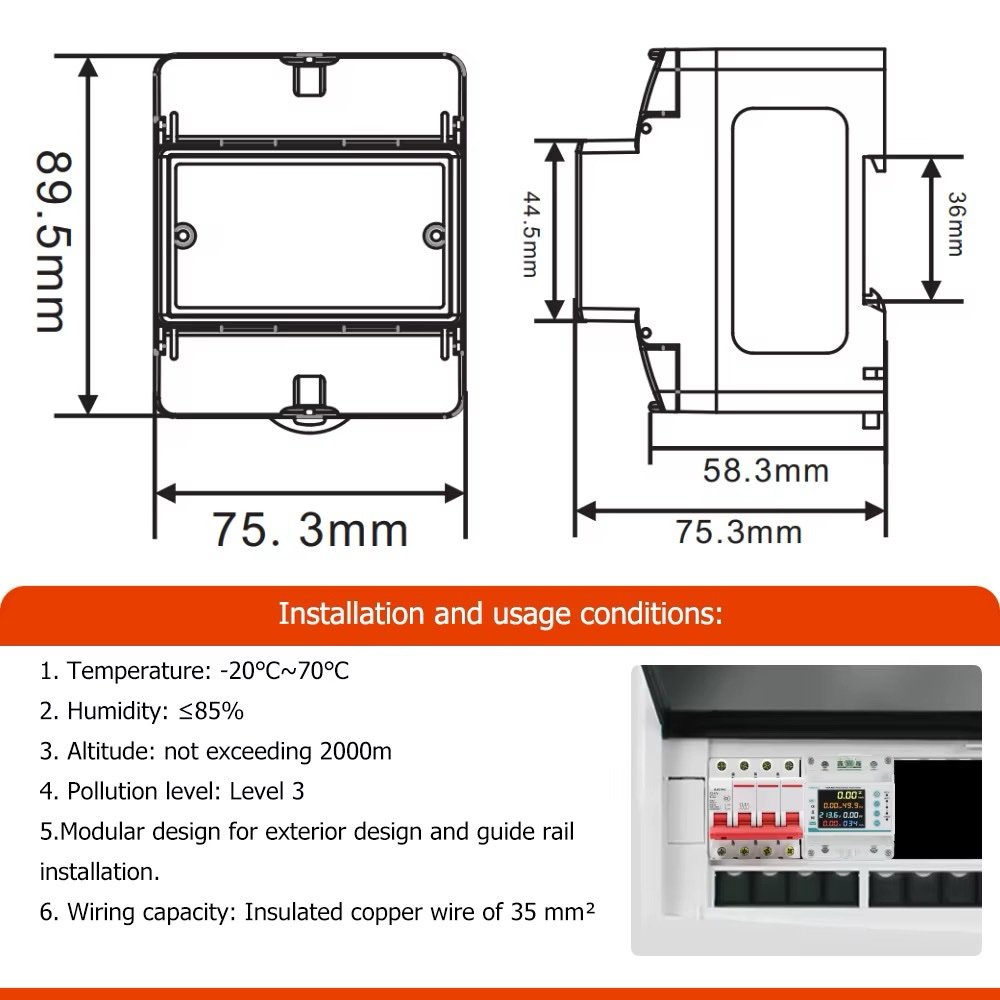

- Approximate dimensions: 89.5 × 75.3 × 75.3mm
Installation notice: Installation must be carried out by a qualified electrician. Confirm the wiring diagram and protection settings before energizing the circuit.
